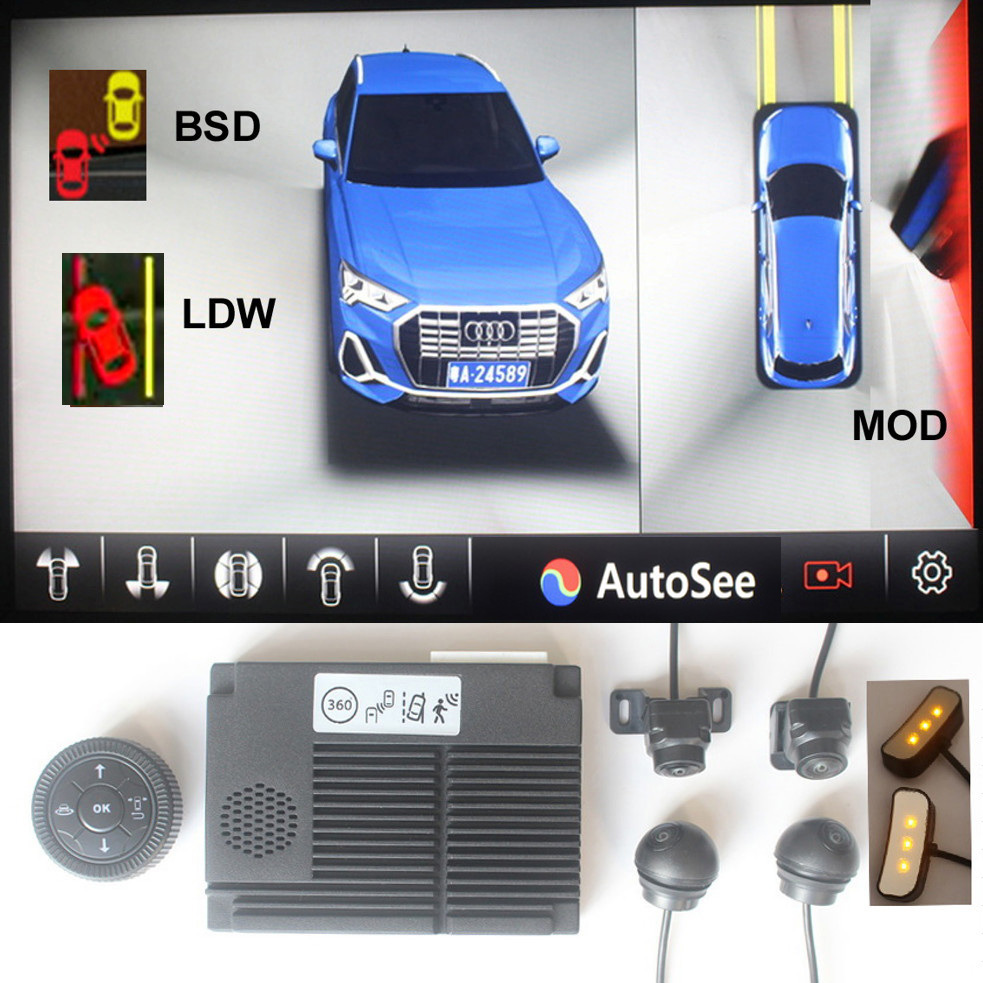

BSD LDW MOD car 360 degree Camera AVM around view 24 hours Parking monitoring video recording with mirror LED light and sound warning
option 1: the 360 system is compatible with monitor, DVD, navigation which have AV (RCA) port and trigger cable. such as below picture, you can choose our 8 inch monitor
option 2: we send plastic tape for panoramic splice (form 4 camera's image to one image), if you want to replace plastic tape by cloth to do splice (cloth is more convenient, but same effect to tape), you can order cloth from us
Feature:
more than 10 kinds of car models shown on image, 6 kinds of color, can enter car's license number
camera use SONY CCD sensor, Low light night view, AV out resolution 1920x1080P.
Function:
1.ADAS include BSD, LDW, MOD (English voice warning)
2. RF rotary knob remote control.
3. after car start, automatically circular display (can disable it)
4. can set back view when turn steering
5. support CVBS, AHD, HDMI video format, easy change in menu
6. high resolution: 1920x1080P
7. seamless calibrate, no blind spot
8. 4 way video recording and playback
9. parking monitoring, can set 2-24 hours video recording after car flameout.
10. circular recording, new file automatically cover old file.11. can set car model to transparent, image can show more
12. support USB and TF card as video storage
Main function:
when car reverse, turn Left or Right, 360 system trigger by lamp signal, car screen will automatically switch to Back, Left, Right view, then show Front view after trigger
how to open 360 bird view:
1. when car startup ACC on
2. press remote control
3. double press car 'Hazard warning light button'
4. trigger by lamp signal

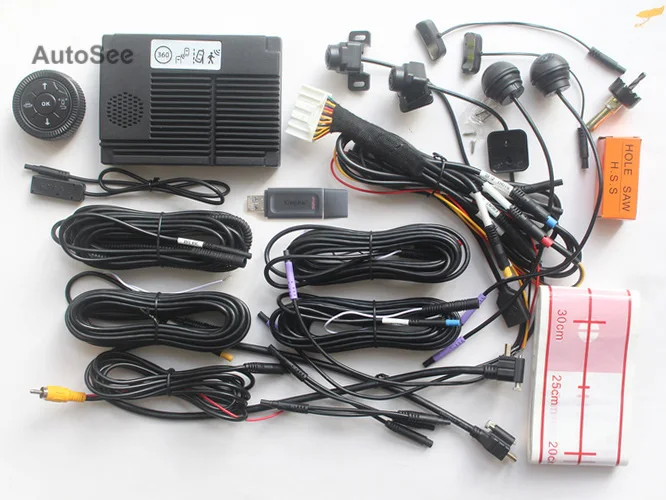

Components:
1
Main device: core processor
7
RF Remote control
2
4pcs camera 180 angle/each
8
user Manual: English
3
Main cable
9
Hole drill (diameter 22.5mm)
4

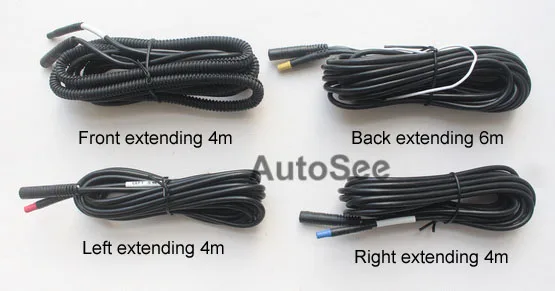

4pcs Camera Extension cable
10
horn
5

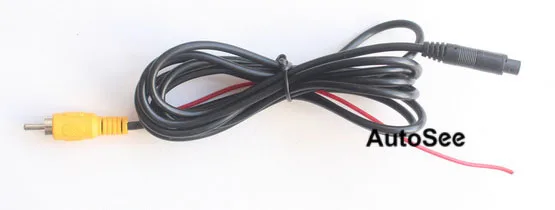

video cable
11
32GB USB disk
6
plastic tape for splice

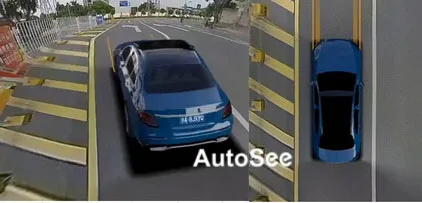

when car reverse, turn Left or Right, 360 system trigger by lamp signal, show below view.

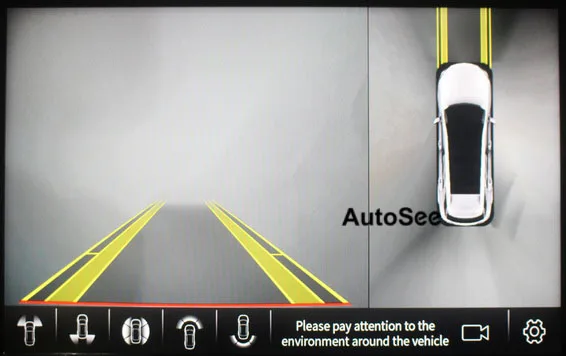

when reverse:
when turn steering, in menu you can choose 3 kinds of view mode: Back+side, Front+side, or Back.
Back+side:
Front+side:
Back big image:

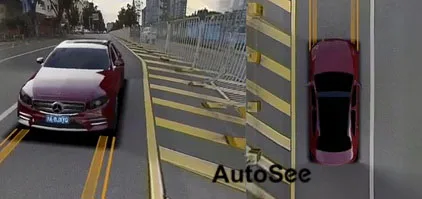

after trigger, will get back to Front view
other view modes: press car hazard button, can show left and right meantime.
ADAS: BSD, LCW, MOD
BSD: blind spot detection and warningBSD trigger conditions: reach the set starting speed and turn on the prompt tone when a vehicle approaches the blind area behind the side 15-20m, an icon will remind you, and then a sound will remind you after dialing the turn signal.

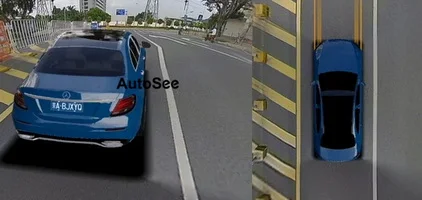

LDW: Lane departure warningLDW trigger conditions: when the set opening speed is reached and the prompt tone is turned on, when the vehicle exceeds the lane line without turning on the turn signal, the sound is used to remind.
MOD: when an object more than 30 * 30cm moves around the vehicle, the side of image of object will turn to Red, also remind with sound.
RF rotary knob remote control:
can stick it near driver, control by press button or 360° positive and negative rotate.
can easily slip out bottom cover to install CR2032 battery.

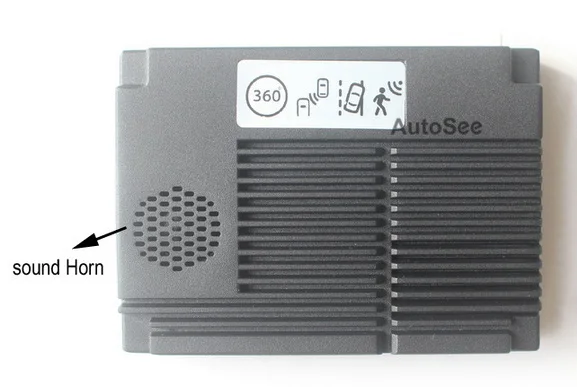

main host:

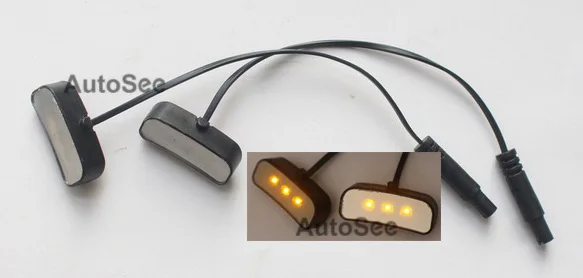

for BSD function: Mirror with LED indicator (can stick it on left and right of driver):

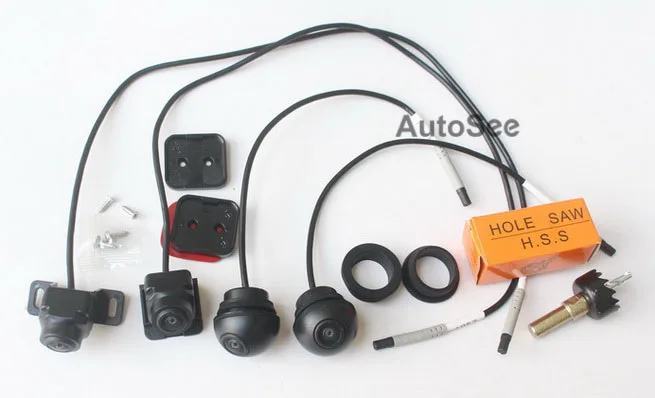

with plastic ring (8° and 0°) for left and right lens, suit for more installation situation.
with plastic stander for Rear camera: 2 kinds of angle

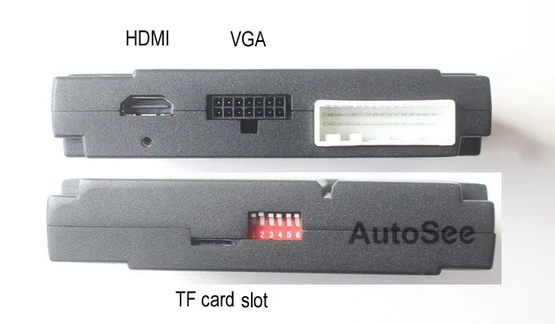

cable and connector:
installation: Left and Right rearview mirror need drill hole to install camera.

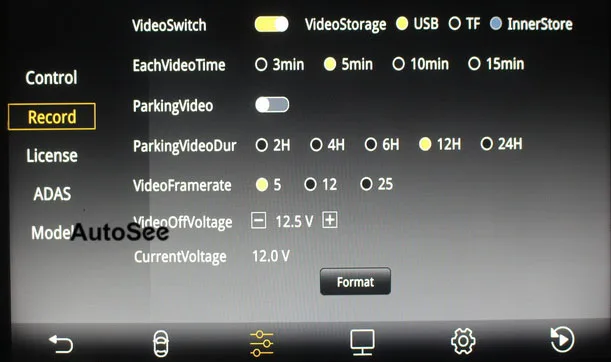

Parking monitoring, can set 2-24 hours video recording after car flameout.
new video cover earliest old video automatically, don't miss time.
Menu easy setting:

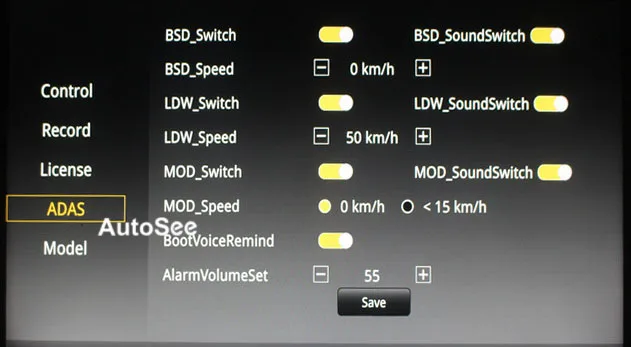

ADAS include BSD, LDW, MOD functions:

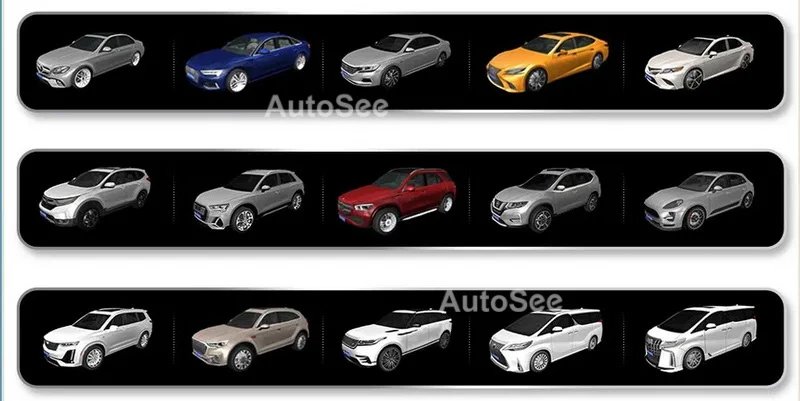

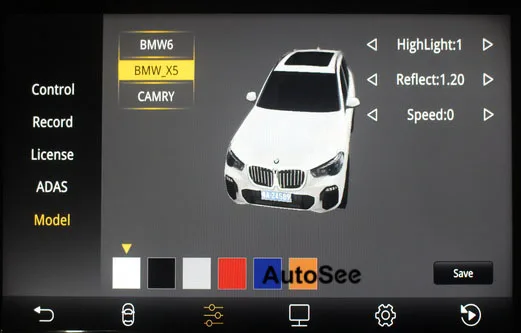

system have more than 10 kinds of car models, 6 kinds of below colors:
can enter your car's license number, look more like your car.
Calibration Splice:
Video play back, provide evidence when happen special situation:

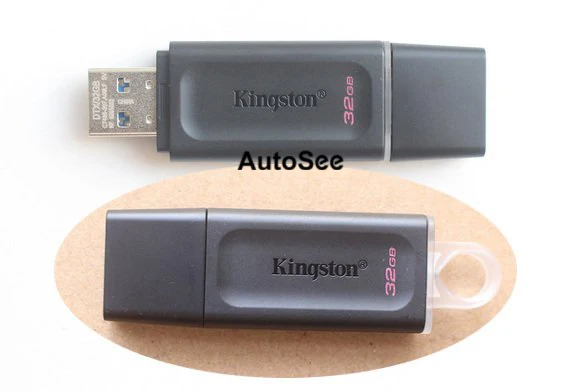

with 32GB USB disk:
why need 360 camera?
Car blind areas:
waterproof testing:
