ORV off roader SUV for Benz for Jeep sports car 360 degree birds eye around view 4 way cameras video recording parking defense
Feature:
movement detection and recording
camera use SONY sensor, Low light night view, high resolution 1920x1080 AV (CVBS) out.
option 1.the system don't include monitor,it compatible with monitor, DVD, navigation which have AV (RCA) port with trigger cable.you can buy our 8 inch monitor
optional 2:we send plastic tape for panoramic splice (make 4 camera's image to one image), if you want to replace plastic tape by cloth to do splice (more convenient, but same effect to plastic tape), you can order cloth from us
main functions:
1. 360 degree Bird view,circle display automatically when car start.
2. 4-way video recording and playback
3. default is stright type guide line.
4, 1-24 hours video recording monitoring after car flameout
5. movement detection (adjustable sensitive), automatically video recording
6. support USB disk storage, recording circularly
7. intelligent detect car battery, if below setting, device automatically shut down to assure safety.
8, support AV (CVBS), AHD, HDMI video out
9. support most Android monitor

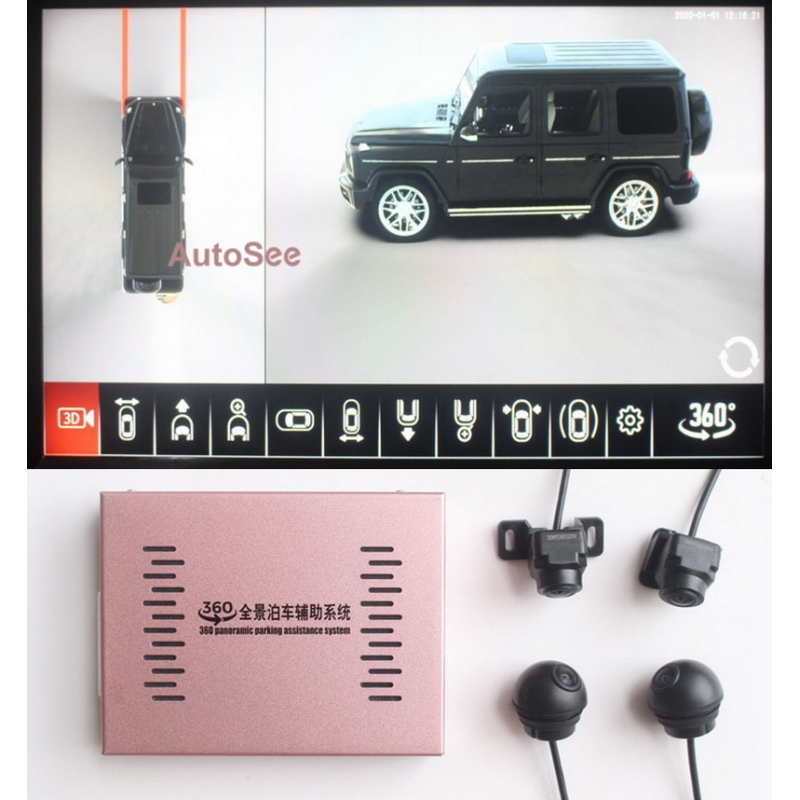

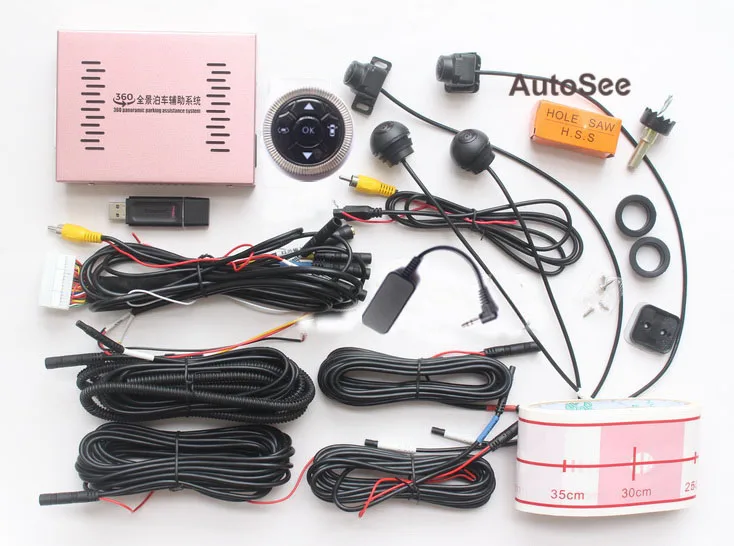

Components:
1
Main device: core processor
7
Remote control IR receiver
2
4pcs camera 180 angle/each
8
Panoramic calibration tape
3
Main able: 32pin
9
Hole drill (diameter 23mm)
4
4pcs Camera Extension cable
10
screws
5
user Manual: English
11
U disk 32G high speed 3.2
6
Remote control
default show is Front view, when car reverse, turn Left and Right (trigger by lamp signal), the screen will automatically switch to Back, Left, Right view.(if you want to see Car Radio after trigger, you can change setting in menu)
newest software:
when car turn Left and Right with lamp signal
you can adjust to any angle by remote control:

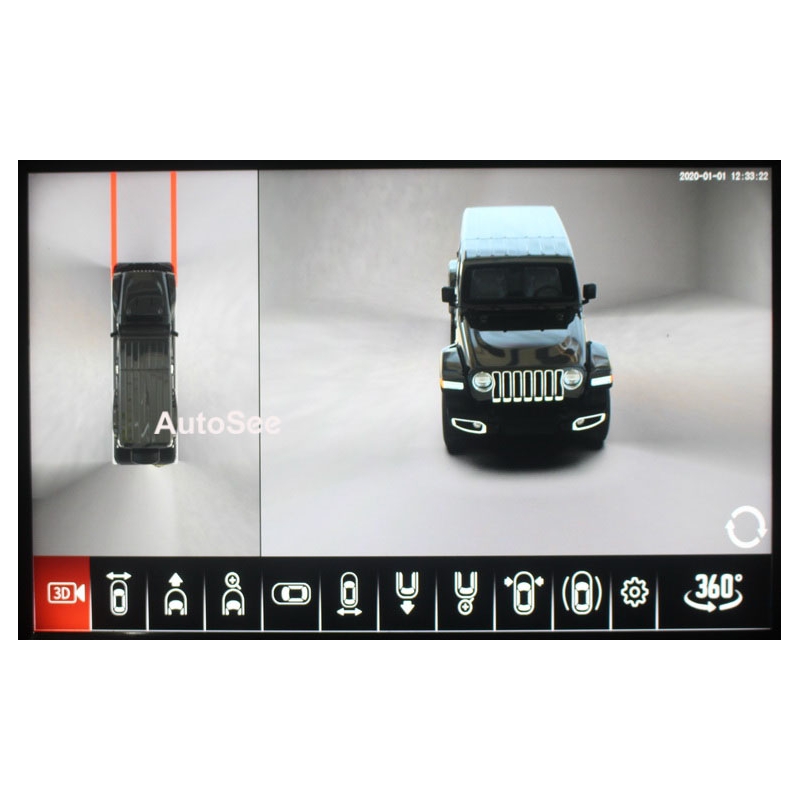

10 kinds of view mode: (car model changed to Motorhome)
press Emergency light button, you can see Left and Right side in one image , suit for passing narrow place.
Video playback on night:
below picture is taken on dark night, whole room only have light from sheild monitor.
360 degree seamless view, avoid driving blind, easy parking.

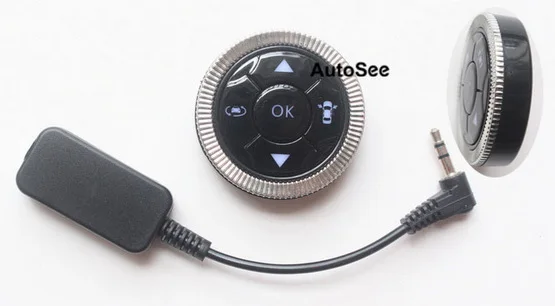

knob rotate to control:
camera updated to below style, with plastic ring (8° and 0°) for left and right lens, suit for more installation situation.
with plastic stander for Rear camera: 2 kinds of angle

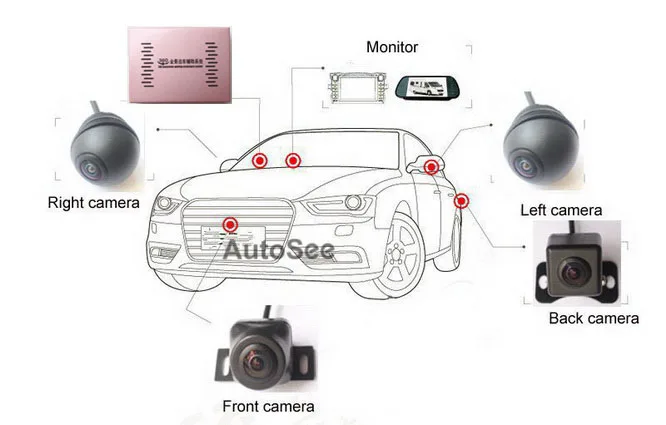

installation: Left and Right rear-view mirror need drill hole to install camera.
video playback:
can set 1-24 hours parking monitoring, video recording, safe parking.
Recording circularly,new video cover old video automatically, don't miss time.
Menu easy setting:
can playback, lock, unlock, delete files and Format U disk:
can set different view mode, set if automatic circle view when car start, etc
you can set video out always 'keep On' or set video out time 0, 3, 5, 10 or 30 seconds, after trigger certain time, screen get back to radio.
you can set Recording mode to Automatic or Movement detection.
MDsensibility is movement detect sensitive, can set high, middle, low.
you can set battery power limit, if below the limit, 360 camera host will shut down.
you can set 1-24 hours parking monitoring, video recording time after car flameout.

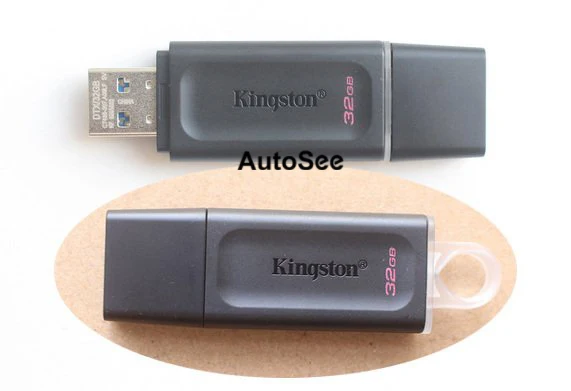

32GB U disk high speed 3.2:
